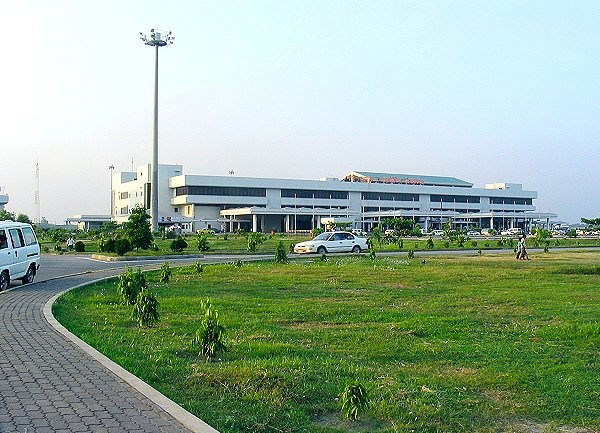

Ground Handling at VGEG Airport / CGP Airport / CHITTAGONG Airport
| AIRPORT NAME: | SHAH AMANAT INTERNATIONAL AIRPORT, CHITTAGONG |
| ICAO CODE: | VGEG AIRPORT |
| IATA CODE: | CGP AIRPORT |
| CITY | CHITTAGONG |
| AERODROME GEOGRAPHICAL AND ADMINISTRATIVE DATA AT VGEG AIRPORT / CGP AIRPORT / CHITTAGONG AIRPORT | ||
| 1 | ARP coordinates and site at AD | 221525.28N 0914919.95E, on the RWY |
| 2U | Direction and Distance from City | 10 NM (18 .5 KM) South of city Railway Station |
| 3 | Elevation/Reference temperature | ELEV : 14 FT
T : 32° C (April) |
| 4 | MAG VAR/Annual change | 1 W in 1985 ( Annual change negligible) |
| 5 | Types of traffic permitted | IFR/VFR |
| OPERATIONAL HOURS AT VGEG AIRPORT / CGP AIRPORT / CHITTAGONG AIRPORT | ||
| 1 | AIRPORT HOURS AT VGEG AIRPORT / CGP AIRPORT:: | 0200 UTC – 1200 UTC |
| 2 | RESTRICTIONS AT VGEG AIRPORT / CGP AIRPORT: | 1200 UTC – 0200 UTC |
| 3 | CUSTOMS AND IMMIGRATION AT VGEG AIRPORT / CGP AIRPORT: | YES
|
| 4 | PORT OF ENTRY/ EXIT AT VGEG AIRPORT / CGP AIRPORT: | YES
|
| 5 | SLOTS/PPR REQUIREMENTS AT VGEG AIRPORT / CGP AIRPORT: | YES,
You can email us at ops@bizaviation.net to apply and coordinate slots. |
| 6 | GROUND HANDLER/ SUPERVISORY AGENT at VGEG AIRPORT / CGP AIRPORT | BizAv International Pvt Ltd
You can email us at ops@bizaviation.net to arrange Ground Handling. |
| 7 | HEALTH AND SANITATION AT VGEG AIRPORT / CGP AIRPORT: | AS ATS |
| 8 | AIS BRIEFING OFFICE AT VGEG AIRPORT / CGP AIRPORT: | AS ATS |
| 9 | ATS reporting office (ARO) AT VGEG AIRPORT / CGP AIRPORT: | CONSULT NOTAM |
| 10 | MET BRIEFING OFFICE AT VGEG AIRPORT / CGP AIRPORT: | AS ATS |
| 11 | ATS AT VGEG AIRPORT / CGP AIRPORT: | AS ATS |
| 12 | FUELING AT VGEG AIRPORT / CGP AIRPORT: | AS ATS You can email us at ops@bizaviation.net to arrange fuelling. |
| 13 | SECURITY AT VGEG AIRPORT / CGP AIRPORT: | AS ATS |
| 14 | DE-ICING AT VGEG AIRPORT / CGP AIRPORT: | NIL |
| 15 | HANGAR SPACE FOR VISITING AIRCRAFT AT VGEG AIRPORT / CGP AIRPORT: | NIL |
| 16 | CATERING AT VGEG AIRPORT / CGP AIRPORT: | You can email us at ops@bizaviation.net to arrange catering. |
| CREW / PASSENGER FACILITIES AT VGEG AIRPORT / CGP AIRPORT / CHITTAGONG AIRPORT | ||
| 1 | HOTELS | AVAILABLE AT CITY SIDE.
You can email us at ops@bizaviation.net to book hotel. |
| 2 | RESTAURANTS | AVAILABLE |
| 3 | CITY SIDE TRANSPORTATION | AVAILABLE
You can email us at ops@bizaviation.net to book transportation |
RESCUE AND FIRE FIGHTING SERVICES AT VGEG AIRPORT / CGP AIRPORT / CHITTAGONG AIRPORT
| 1 | AD category for fire fighting | CAT: VII |
| 2 | Rescue equipment | AVBL as per category. |
| 3 | Capability for removal of disabled aircraft | NIL |
DECLARED DISTANCES AT VGEG AIRPORT / CGP AIRPORT / CHITTAGONG AIRPORT
| RWY designator | TORA
(M) |
TODA
(M) |
ASDA
(M) |
LDA
(M) |
Remarks |
| 05 | 2940 | 3390 | 3090 | 2940 | NIL |
| 23 | 2940 | 3390 | 2940 | 2940 | NIL |
PHYSICAL CHARACTERISTICS AT VGEG AIRPORT / CGP AIRPORT / CHITTAGONG AIRPORT
| Designations RWY
NR |
TRUE & MAG BRG | Dimensions of RWY
M |
Strength (PCN) and surface of RWY and SWY | THR coordinates | THR elevation and highest elevation of TDZ of precision APP RWY (FT) |
| 05 | 049° TRUE | 2940×45 | PCN 66/F/C/X/T
Bituminous concrete |
22 14 27 N
09148 09.48E |
14 |
| 23 | 229° TRUE | 2940×45 | PCN 66/F/C/X/T
Bituminous concrete |
22 15 30.42 N
09149 26.04E |
14 |
APPROACH AND RUNWAY LIGHTING AT VGEG AIRPORT / CGP AIRPORT / CHITTAGONG AIRPORT
| Designations RWY | APCH LGT TYPE LEN INTST | THR LGT
COLOUR WBAR |
VASIS
(MEHT) PAPI |
TDZ, LGT LEN | RWY centre line LGT
Length, spacing, colour and intensity |
RWY edge LGT
Length, spacing, colour and intensity |
| 05 | Simple
approach lighting system 420m |
Green
Supplem ented by Green Wing bar |
3* PAPI | NIL | NIL | Last 2000ft
amber rest white, omni- directional 20%,40%,60%, 80%, 100% |
| 23 | Precision
approach CAT I lighting system 900m |
Green
Supplem ented by Green Wing bar |
3* PAPI | NIL | NIL | Last 2000ft
amber rest white, omni- directional 20%,40%,60%, 80%,100% |
VGEG Landing Permit Notice Period: It takes 03 working days to obtain a landing permit (flight should operate on 4th day). However we can obtain permit in short notice also subject to approval from the regulatory authority.
Documents required for Landing Permit:
Complete Flight Schedule
Entry / Exit & ATS Routing
Crew Details Plus [ Passport Copies ]
Aircraft Documents [ AOC, COA, COI, COR, CON ] Private Aircraft No AOC required.
– Air Operating Certificate ( AOC )
– Certificate of Airworthiness ( COA )
– Certificate of Insurance ( COI )
– Certificate of Registration ( COR )
– Noise Certificate ( CON )
– Radio License
– TCAS Approval
Passenger Passport Copy and Pax Manifest
Local Receiving Party Contact Details
Crew visa requirements for GA flights in Bangladesh: All general aviation crew arriving in Bangladesh can be cleared on Gen Dec for up to 72 hours else we can apply for visa on behalf of crew well in advance
Remarks: It is mandatory regulation to carry tow bar on board the aircraft in Bangladesh, Self-power out parking stands are subject to availability. Tow bar for most of the business jets are available on ground at Major airports with the handler. Kindly check the availability of tow bar on ground at the airport prior to operation
Note: Information given in above article are subject to change from time to time, for latest information please feel free to contact us.
If you have any questions about this article or would like assistance planning your next flight to Bangladesh, contact us ops@bizaviation.net or (OPS)- (+91)-93 11 11 11 96.
You can also read our blog on business aircraft ops to Major International Airports in Bangladesh: VGHS Airport (Dhaka Airport), VGSY Airport (Osmani Airport)
